Locating, Inspecting, & Fault Finding Utilities Equipment for Electric, Gas, Water, Sewer, and Data

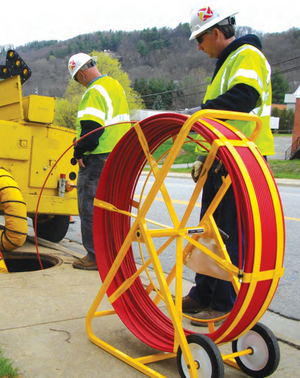

Locatable Rods
Locatable rod equipment can be pushed through small areas to help locate problem lines, as well as in a non-invasive setting. It can also be used in a live gas line settling by using a stuffing box.
Locatable rods are a non-invasive underground pipe locator tool ideal for tracing underground conduit or pipe. Duct rodders are designed to be used with standard underground pipe locator equipment to trace the length of the rod, making locating non-conductive ducts up to 10' depth a simpler task. Locatable rods are the best underground utility locating equipment for PVC gas services, and you don’t even need a tracer wire.
We currently have the following underground utility locating equipment for sale in our lineup:
FREE ON-SITE TRAINING
In addition to providing our customers with the best underground utility locator equipment for their needs, Locator Guys offers free, on-site training with every purchase. Our experienced team will not leave your work site or location until your technicians are fully trained and feel comfortable using the equipment. We will also provide your staff with additional, free, on-site training once a year to make sure you are completely satisfied with the utility locator equipment you have purchased.
In addition, we offer free on-site demonstrations of products as well as free customer support 24 hours a day, seven days a week, and free loaners when your equipment is being serviced. We offer our customers, customer service at its best.
Schedule A Free, On-Site Demo Click Here For Local Training Events
Jameson Live Gas/Water Rodders
Fiberglass rod with tracer wire and grounding with integrated Stuffing Box that locates live plastic lateral gas lines from meter to the main.
Use Jameson Live Tracer™ Traceable Rodder with transmitter and receiver to locate live plastic gas service lines from meter to main. Connect transmitter to Live Tracer™ to energize unit with specific frequency. When energized rod is pushed into pipe, signal radiates out to surface where a receiver detects the frequency. The entire buried pipe can be traced and marked continuously from above ground by one man without digging.
- Stuffing Box connects to any riser’s shut off valve
- No blow-by while feeding rod into live line up to 125 PSI
- Small bullet tip guides rod from riser to lateral transition
- Use any transmitter and receiver to noninvasive trace gas line from above ground
- Includes wire and clip for static grounding
- Stuffing Box and Accessory Kit included
- Dimensions: 22″ X 17″ X 7″
Field evaluated by GTI
more
Duct Hunter Traceable Rodders
Duct Hunter Traceable Rodders are your non-invasive underground pipe locating solution. Copper trace wire in the rod means no digging or trenching, just user-friendly locating.
Copper wire inside fiberglass core is energized with an electromagnetic signal that is detectable above ground through the use of hand held signal receiver.
New Technology to locate your PVC gas services without a tracer wire with the Duct Hunter.
The Duct Hunter™ is a traceable duct rodder that offers a non-invasive solution for locating and mapping underground ducts and pipes. Save time by eliminating digging and trenching. The detectable fiberglass rod incorporates a copper trace wire that can be located at depths up to 10 feet. When used with a signal transmitter to energize the wire, an electromagnetic signal is then detected via hand-held receiver to trace the entire line. The Duct Hunter™ comes standard with a male end ferrule, pulling eye and accessory kit conveniently attached to the frame.
- 4″ Bend Radius
- Locate sewer laterals to confirm no cross bore has occurred
- Locate ductile iron, plastic, tile or concrete pipe
- For use in conduit with an inside diameter between 1 and 2 inches
- Includes 300 ft. of 1/4-inch diameter traceable fiberglass rod marked every 5 ft. (Metric every 1m)
- Dimensions: 36.25″ x 24″ x 13″
Mini Traceable Rodders
The Mini-Duct Hunter™ is a traceable duct rodder that offers a non-invasive solution for locating and mapping underground ducts and pipes measuring between ½ and 1 ½ inches. The detectable fiberglass rod incorporates a 22 AWG copper trace wire that can be located at depths up to 10 feet. When the energized Mini-Duct Hunter™ rod is pushed into pipe, the signal radiates outward to the surface. A signal receiver detects the frequency applied to the Mini-Duct Hunter™, allowing the pipe to be traced inside walls, floors or underground. Accessory kit is included.
- 2.5″ Bend Radius
- Trace sewer laterals (up to 4 inches in diameter) to avoid cross bores
- Locate fiber optic cable in plastic pipe without tracer wire
- Locate fiber optic micro-duct during fiber-to-the-home applications
- Fiberglass will not rust during plumbing applications
- Handle and lightweight frame for easy transport
- For use in conduit with an inside diameter between 1/2 and 1-1/2 inch
- Includes 100 ft. of 3/16-inch diameter traceable fiberglass rodAccessory Kit includedDimensions: 22″ X 17″ X 7″
Big Buddy® Duct Conduit Rodder
Big Buddy® Duct Conduit Rodders are heavy duty, non-conductive and ideal for manhole-to-manhole work or long-run cable pulls. Its round, flexible rod slides easily over wires in occupied conduit. It has exceptional bending strength for maneuvering tight turns and will not kink. Big Buddy® accessories attach to rod for greater versatility and easier fishing.
- 800 ft. of 1/2-inch diameter fiberglass rod marked every 5 ft. (Metric every 1m)
- Ideal for 4″ or larger conduit
- 10″ Bend Radius
- 1,000-lb Pull/Tensile Strength
- Drag brake and safety feed eye control pay out
- Canvas Pouch Accessory Kit Included: Splice Ferrule, Pulling Eye, End Ferrule, Adhesive, and Emery Cloth
- Dimensions: 47.5″ X 44″ X 20″
- Weight: 176 lbs.
